Hugo generates this site, with automatic builds & deployments handled by Wercker. To keep the tunes section of this site up to date Wercker API triggers builds. Unfortunately decent documentation is a bit lacking when it comes to clarity, so here’s a little tutorial on how I got this to work. Important stuff in the api return json is highlighted.
Parameters we need #
<token>
#

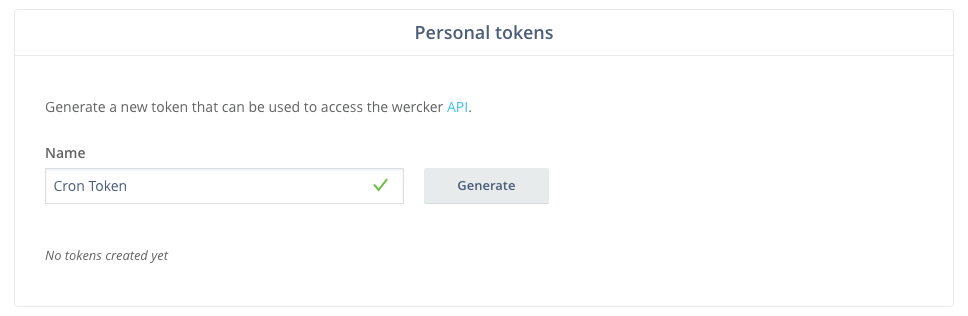

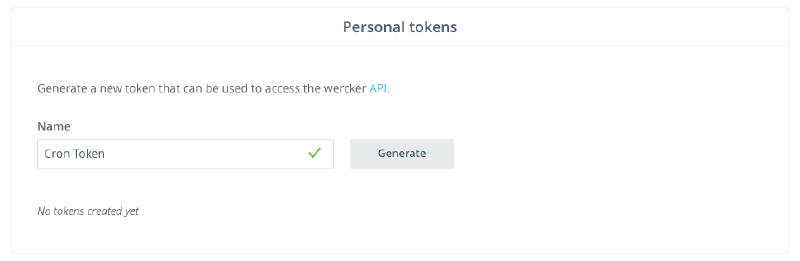

According to the documentation this can be generated in the profile settings
For sake of argument lets say that the generated token is 7c6a180b36896a0a8c02787eeafb0e4c
<applicationId>
#
To get the <applicationId> the appropriate api call would be:
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer <token>' https://app.wercker.com/api/v3/applications/<username>/<application>
So let’s try this filling in my username (alrayyes) and application (ryankes.eu):
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer 7c6a180b36896a0a8c02787eeafb0e4c' https://app.wercker.com/api/v3/applications/alrayyes/ryankes.eu
The response:
{
"id": "b4bd7238111424a17180fc52c88fed96",
"url": "https://app.wercker.com/api/v3/applications/alrayyes/ryankes.eu",
"name": "ryankes.eu",
"owner": {
"type": "wercker",
"name": "alrayyes",
"avatar": {
"gravatar": "0cc175b9c0f1b6a831c399e269772661"
},
"userId": "24779006937429bb5dbda1896edbeb98",
"meta": {
"username": "alrayyes",
"type": "user",
"werckerEmployee": false
}
},
"builds": "https://app.wercker.com/api/v3/applications/alrayyes/ryankes.eu/builds",
"deploys": "https://app.wercker.com/api/v3/applications/alrayyes/ryankes.eu/deploys",
"scm": {
"type": "git",
"owner": "alrayyes",
"domain": "bitbucket.org",
"repository": "ryankes.eu"
},
"badgeKey": "f97c5d29941bfb1b2fdab0874906ab82",
"createdAt": "2016-09-20T22:28:31.177Z",
"updatedAt": "2016-09-20T22:28:31.177Z",
"allowedActions": [
"delete_project",
"update_project",
"transfer_ownership_project",
"update_checkout_key",
"list_authorizations",
"create_authorization",
"read_authorization",
"update_authorization",
"delete_authorization",
"read_heroku_collaborators",
"send_invites",
"create_key",
"delete_key",
"update_key",
"update_teams",
"delete_team",
"update_org",
"create_member",
"delete_member",
"update_member",
"create_team_members",
"delete_team_members",
"org_create_app",
"org_transferownership_app",
"org_transfer_apiUser_app",
"update_project_button",
"cancel_customer",
"create_customer",
"get_customer",
"update_customer",
"get_billing",
"update_billing",
"update_extended_permissions",
"get_invoice",
"list_invoices",
"deploy_build",
"reset_deploy_warnings",
"create_deploytarget",
"create_target",
"update_target",
"delete_target",
"create_target_trigger",
"update_target_trigger",
"read_target_trigger",
"delete_target_trigger",
"read_deploytarget",
"abort_deploy",
"update_deploytarget",
"delete_deploytarget",
"read_deploytargetsettings",
"application_envcollection",
"list_key",
"read_key",
"create_env_var",
"update_env_var",
"delete_env_var",
"build_project",
"rebuild_build",
"abort_build",
"read_deploy",
"list_deploysteps",
"read_deploystep",
"read_deploytarget_logs",
"add_pullrequest",
"receive_push",
"autodeploy_build",
"fix_webhook",
"clear_cache_project",
"list_teams",
"list_members",
"org_read_wallItem",
"read_docker_image",
"create_run",
"abort_run",
"list_extended_permissions",
"read_env_var",
"read_project",
"list_builds",
"read_build",
"list_runs",
"read_run",
"list_runsteps",
"read_runstep",
"list_buildsteps",
"read_buildstep",
"follow_project",
"unfollow_project",
"list_targets",
"read_target",
"list_workflows",
"list_collaborators",
"list_comment",
"create_comment"
],
"theme": "Oranje",
"settings": {
"privacy": "private",
"stack": 6,
"ignoredBranches": []
}
}So in this case the <applicationId> is b4bd7238111424a17180fc52c88fed96
<pipelineId>
#
To get the <pipelineId> the appropriate api call would be:
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer <token>' https://app.wercker.com/api/v3/workflows?applicationId=<applicationId>
Let’s run this with our application id:
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer 7c6a180b36896a0a8c02787eeafb0e4c' https://app.wercker.com/api/v3/workflows?applicationI=b4bd7238111424a17180fc52c88fed96
The response:
[
{
"url": "https://app.wercker.com/api/v3/workflows/7e786a17b9da91e2fe17a45fe63fb3e2",
"createdAt": "2016-09-24T13:37:31.436Z",
"data": {
"branch": "master",
"commitHash": "c6130827850af1c13ad1d19487232308",
"message": "Merge branch 'hotfix/2.3.7'\n",
"scm": {
"repository": "ryankes.eu",
"domain": "bitbucket.org",
"owner": "alrayyes",
"type": "git"
}
},
"id": "7e786a17b9da91e2fe17a45fe63fb3e2",
"items": [
{
"data": {
"targetName": "build",
"pipelineId": "01f995498924d4e3024b52e3941c8468",
"restricted": false,
"totalSteps": 6,
"currentStep": 6,
"stepName": "store",
"runId": "33bab24842fa8e22446b5a233572933b"
},
"id": "fafe1b60c24107ccd8f4562213e44849",
"progress": 100,
"result": "passed",
"status": "finished",
"type": "run",
"updatedAt": "2016-09-24T13:37:58.868Z"
},
{
"data": {
"targetName": "deploy-production",
"pipelineId": "6cae0f032acc7acbdf8ca52a9a6ed81b",
"restricted": false,
"totalSteps": 5,
"currentStep": 5,
"stepName": "store",
"runId": "f4b003f5ca1419b0bbbee7e9b4ccf935"
},
"id": "d1ec3fe3aa3b0ebdb37f2bf7cddf27dc",
"parentItem": "fafe1b60c24107ccd8f4562213e44849",
"progress": 100,
"result": "passed",
"status": "finished",
"type": "run",
"updatedAt": "2016-09-24T13:38:25.841Z"
}
],
"startedAt": "2016-09-24T13:37:33.696Z",
"trigger": "git",
"updatedAt": "2016-09-24T13:38:25.839Z",
"user": {
"meta": {
"werckerEmployee": false,
"type": "user",
"username": "alrayyes"
},
"userId": "24779006937429bb5dbda1896edbeb98",
"avatar": {
"gravatar": "0cc175b9c0f1b6a831c399e269772661"
},
"name": "alrayyes",
"type": "wercker"
}
}
]Because we want to trigger the build itself we take the first pipeline id (01f995498924d4e3024b52e3941c8468)
The run trigger itself #
To recap, we now have all the data we need:
<token> |
<pipelineId> |
|---|---|
| 7c6a180b36896a0a8c02787eeafb0e4c | 01f995498924d4e3024b52e3941c8468 |
Documentation says we need to do the following:
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer <token>' -X POST -d '{"pipelineId": "<pipelineId>"}' https://app.wercker.com/api/v3/runs/
The command with our data would be:
curl -H 'Content-Type: application/json' -H 'Authorization: Bearer 7c6a180b36896a0a8c02787eeafb0e4c' -X POST -d '{"pipelineId": "01f995498924d4e3024b52e3941c8468"}' https://app.wercker.com/api/v3/runs/
The final return code:
{
"id": "dc264945402b29a2e0a176081ac94459",
"url": "https://app.wercker.com/api/v3/runs/dc264945402b29a2e0a176081ac94459",
"branch": "master",
"commitHash": "cac9c20b6af734e6ce3dbe6f1d6e87f6",
"createdAt": "2016-09-24T14:19:24.786Z",
"envVars": [],
"message": "Merge branch 'hotfix/2.3.7'\n",
"commits": [],
"progress": 0,
"result": "unknown",
"status": "notstarted",
"user": {
"meta": {
"username": "alrayyes",
"type": "user",
"werckerEmployee": false
},
"userId": "24779006937429bb5dbda1896edbeb98",
"avatar": {
"gravatar": "0cc175b9c0f1b6a831c399e269772661"
},
"name": "alrayyes",
"type": "wercker"
},
"pipeline": {
"id": "01f995498924d4e3024b52e3941c8468",
"url": "https://app.wercker.com/api/v3/pipelines/01f995498924d4e3024b52e3941c8468",
"createdAt": "2016-09-20T22:28:31.862Z",
"name": "build",
"permissions": "public",
"pipelineName": "build",
"setScmProviderStatus": true,
"type": "git"
}
}
Success!
